Configure Cisco AnyConnect on Cisco Meraki MX firewall with SAML authentication from Azure

AZURE

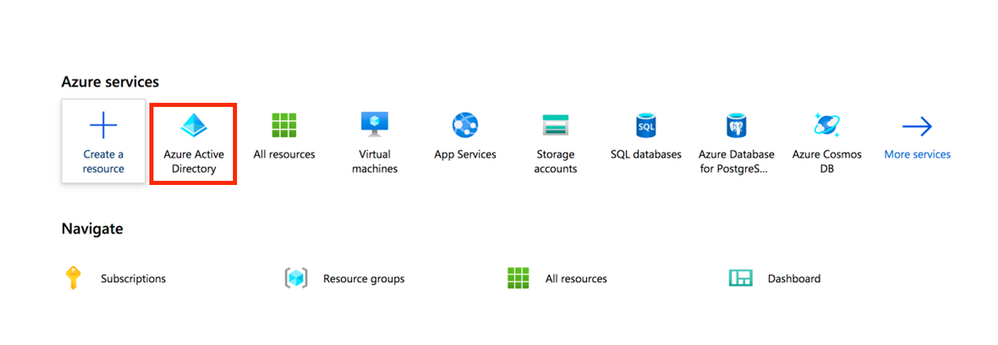

1. Log in to Azure Portal and select Azure Active Directory

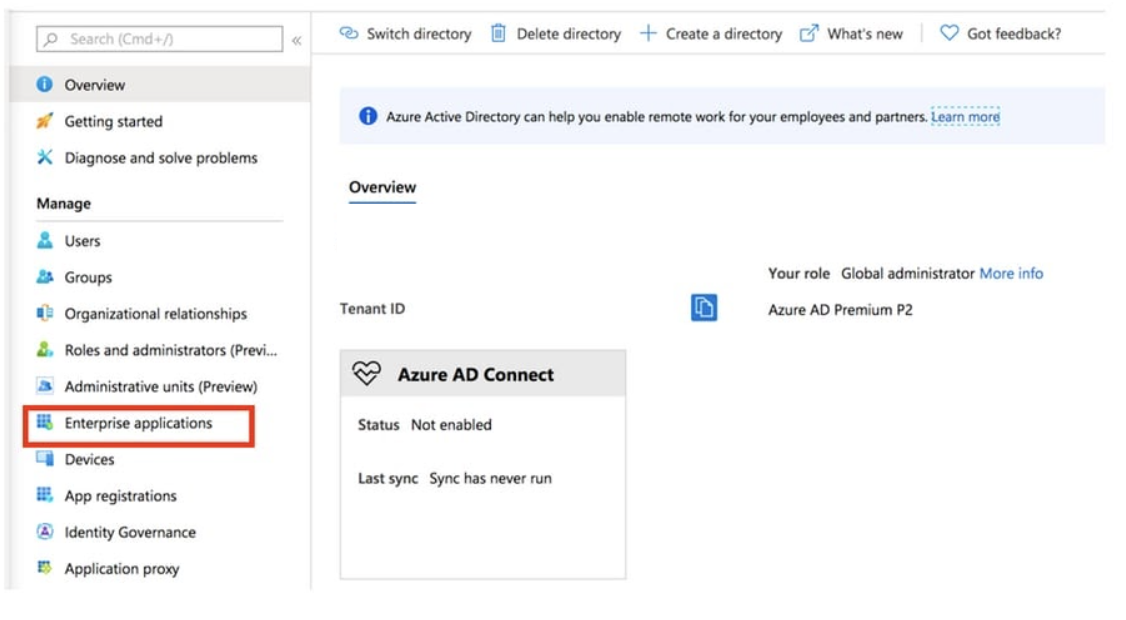

2. Select “Enterprise Applications”

3. New Application

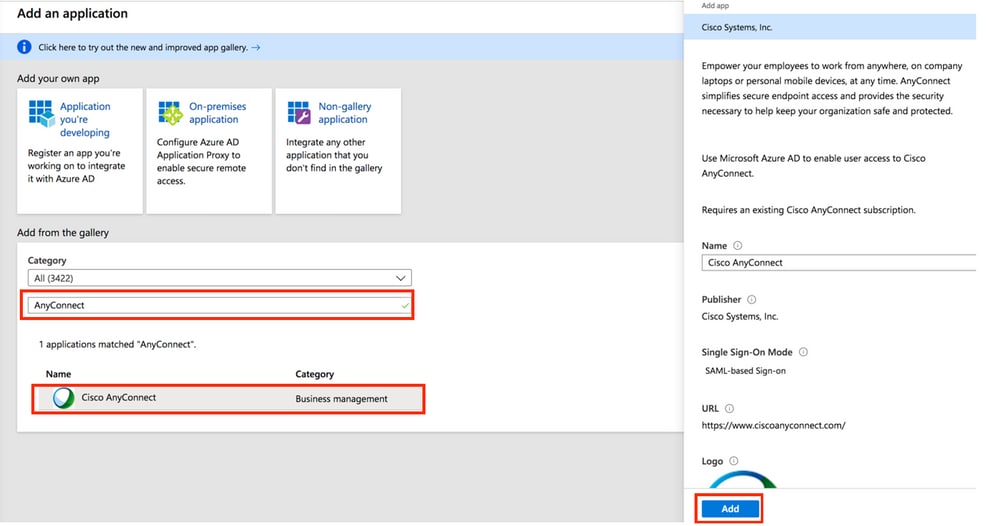

4. In the Add from the gallery section, type AnyConnect in the search box, select Cisco AnyConnect from the results panel, and then add the app.

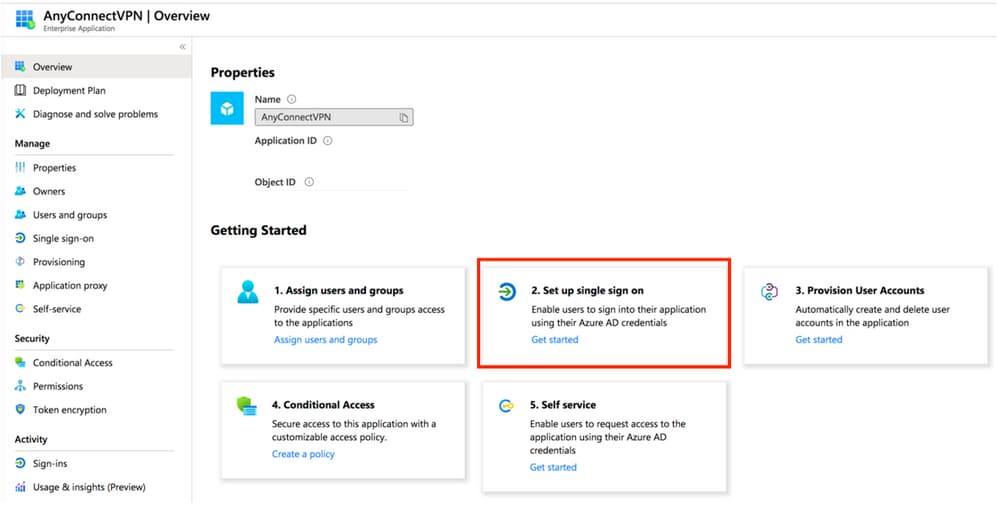

5. Single Sign On

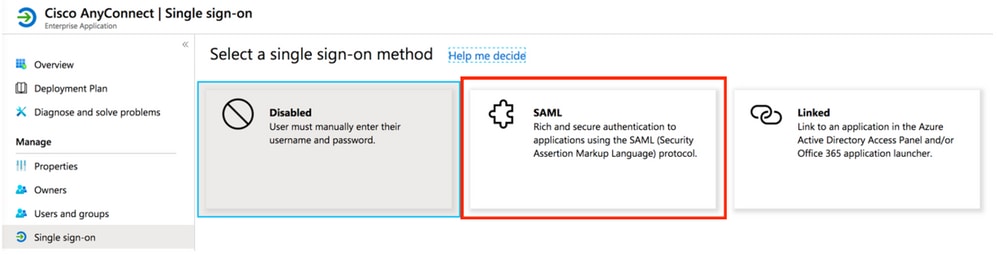

6. SAML

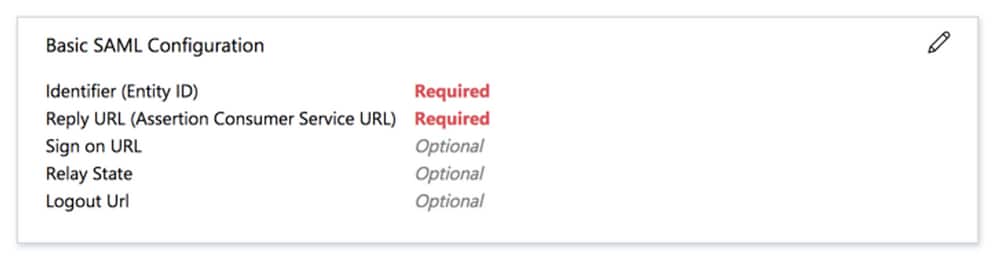

7. Edit Section 1

   1. Identifier (Entity ID)  – https://firewallname-qpjgjhmpdh.dynamic-m.com/saml/sp/metadata/SAML
   2. Reply URL (Assertion Consumer Service URL) – https://firewallname-qpjgjhmpdh.dynamic-m.com/saml/sp/acs

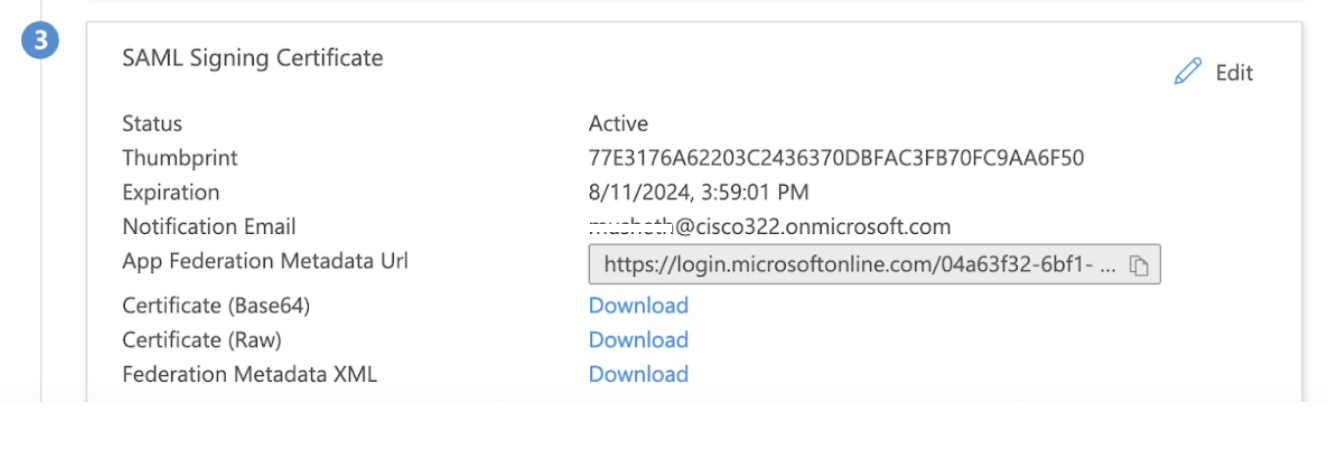

8. SAML Signing Certificate, Download Federation Metadata XML file

CISCO MERAKI

1. Go to your Network

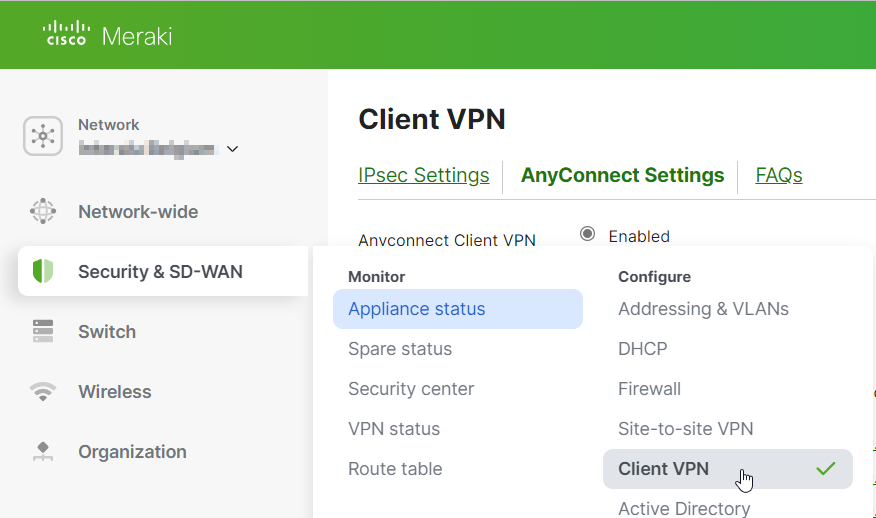

2. Select “Security & SD-WAN” => Configure => Client VPN
3. Second tab “AnyConnect Settings”
   1. Enabled
   2. Leave the default AnyConnect Port to 443
   3. Authentication Type => SAML

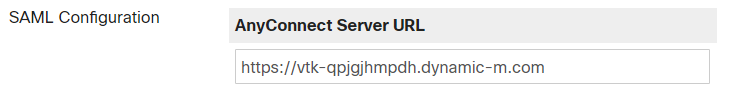

   4. AnnyConnect Server URL, same as the hostname but with “https://”

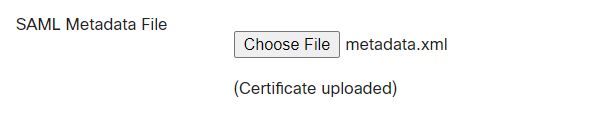

   5. Upload the Federation Metadata XML file from step 8 in the previous section

ASIGN USERS / GROUP

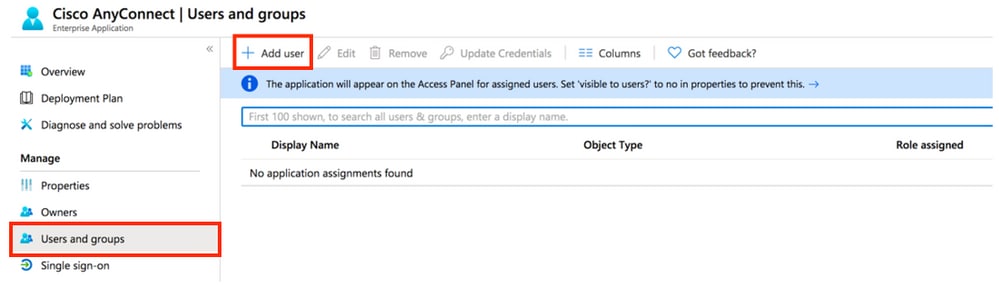

1. Choose left in the menu for “Users and groups” => Add user

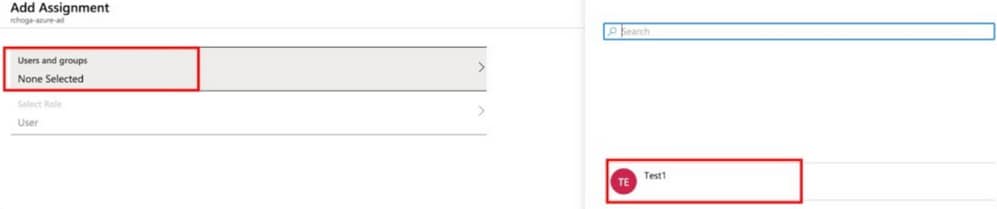

2. Select “Users and groups”

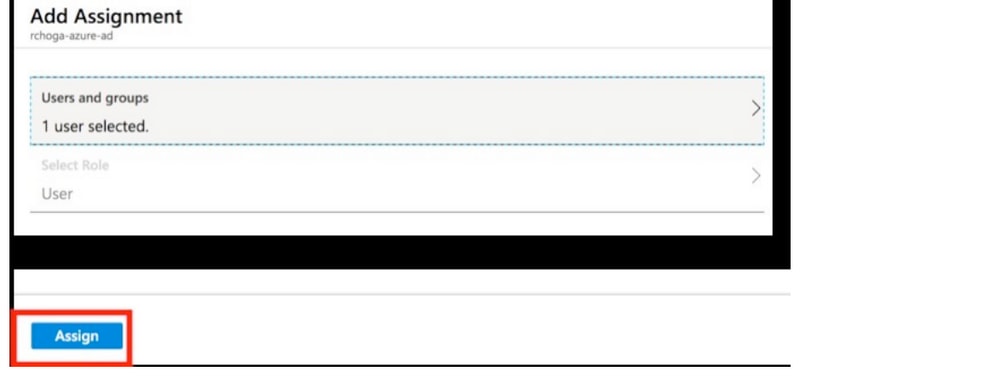

3. Assign
